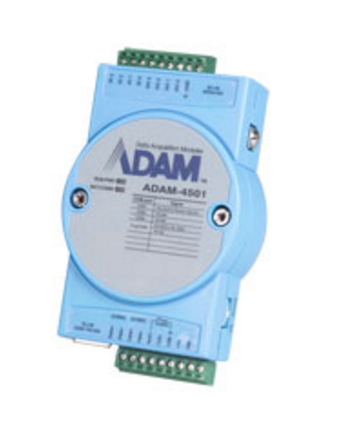

ADAM-4501-AE

产品价格:¥
产品特点:
  1. 10/100Base-T 以太网接口,e-Mail报警功能
  2. 内建Web服务器,内建FTP Server和Client
  3. 支持多种功能的I/O模块,支持标准TCP和UDP Socket全部功能
  4. 可选4字7段LED显示,支持Modbus/RTU和Modbus/TCP函数库
  5. 支持1.5 MB Flash ROM/640 KB SRAM,4个串行端口
  6. Windows工具中集成所有操作
  • 产品介绍
  • 产品规格
General ƒ Connectors 1 x RJ45 (Ethernet) 1 x RJ48 (COM1) 2 x Plug-in terminal blocks (#14 ~ 28 AWG) ƒ Indicators LEDs for Power, run, communication and battery ƒ Power Input Unregulated 10 ~ 30 VDC w/power reversal protection System ƒ CPU 40 MHz, 16-bit ƒ CPU Power 4 W @ 24 VDC Consumption ƒ Memory 1.5 MB flash memory: - 256 kB system flash disk (Drive C: Read Only) - 256 kB flash memory (accessed by function LIB) - 1024 kB file system, 960 kB for user applications (Drive D: Read/Write) 640 kB SRAM, up to 384 kB with battery backup (accessed by function LIB) ƒ Real-time Clock (RTC) Yes ƒ Watchdog Timer Yes Digital Input ƒ Channels 4 ƒ Input Level Dry Contact: Logic level 0 : Close to GND Logic level 1 : Open Wet Contact: Logic level 0 : 2 V max. Logic level 1 : 4 V ~ 30 V Digital Output ƒ Channels 4, open collector to 30 V, 30 mA max. load ƒ Power Dissipation 200 mW Ethernet-enabled Communication Controller with 8-ch DI/O Ethernet-enabled Communication Controller with 8-ch DI/O and 7-segment LED Communication ƒ LAN 1 x 10/100Base-T ƒ RS-485 Speed 1.2 to 115.2 kbps ƒ Serial Ports COM1: RS-232 (Full Modem Signals) COM2, COM3: RS-485 COM4: RS-232 (Programming Port)/RS-485 (Selected by Jumper) Software ƒ C Library Borland C++ 3.0 for DOS ƒ Operating System ROM-DOS Environment ƒ Humidity 5 ~ 95% RH ƒ Operating Temperature - 10 ~ 70° C (14 ~ 158° F) ƒ Storage Temperature - 25 ~ 85° C (-13 ~ 185° F)
订货信息:ADAM-4501-AE 以太网通讯控制器带8位数字量I/O
