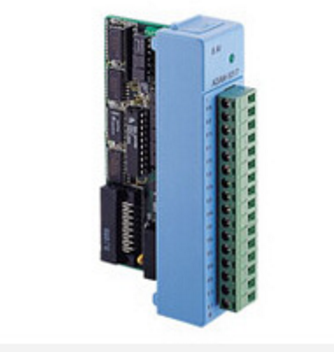

ADAM-5017P-AE

General ƒ Certification CE, FCC Class A ƒ Connectors 1 x Plug-in terminal block (#14 ~ 22 AWG) ƒ Enclosure ABS+PC ƒ Power Consumption 1.25 W (max.) Analog Input ƒ Accuracy Voltage mode : ±0.1% or better Current mode : ±0.2% or better ƒ Channels 8 (differential, each channel can be configured with different range) ƒ CMR @ 50/60 Hz 92 dB min. ƒ Input Impedance Voltage: 800K Ω Current: 120 Ω (Build-in 120 Ω. resistor for Current Input) for Current Input) ƒ lnput Range 0 ~ 150 mV, 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 15 V, ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±15 V, ±20 mA, 4 ~ 20 mA ƒ Resolution 16-bit ƒ Sampling Rate 10 samples/sec. (total) ƒ Span Drift ±25 ppm/°C ƒ Zero Drift ±6 μV/°C ƒ High Common Mode 200 VDC Protection ƒ Over Voltage Protection ƒ Built-in TVS/ESD Protection ƒ Isolation Voltage 3,000 VDC Note: Does not support ADAM-5510KW series

订货信息：ƒ ADAM-5017P 8-ch Analog Input Module w/ Ind. Input Range
