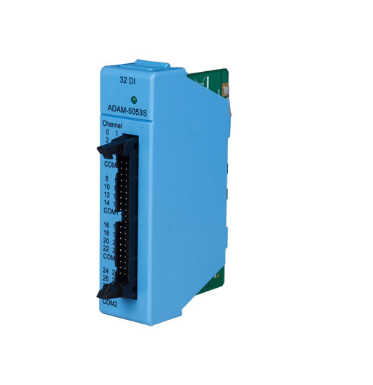

ADAM-5053S

General ƒ Certification CE, FCC class A ƒ Connector 40 pin ƒ Enclosure ABS+PC ƒ Power Consumption 1 W (max.) Digital Input ƒ Channels 32 ƒ Channel I/O Type DI 24 VDC (Sink/Source) Logic Level ƒ Wet Contact Logic level 0: 10 V max Logic level 1: 19 ~ 35 V Protection ƒ Isolation Voltage 2,500 VDC ƒ Overvoltage 35 VDC Protection Note: only for ADAM-5550 & 5560 Series

订货信息：ADAM-5053S 32-ch Digital Input Module ƒ ADAM-3920 20-pin Flat Cable Wiring Board ƒ PCL-10220 40-pin IDC to two 20-pin IDC cable, 1 m
