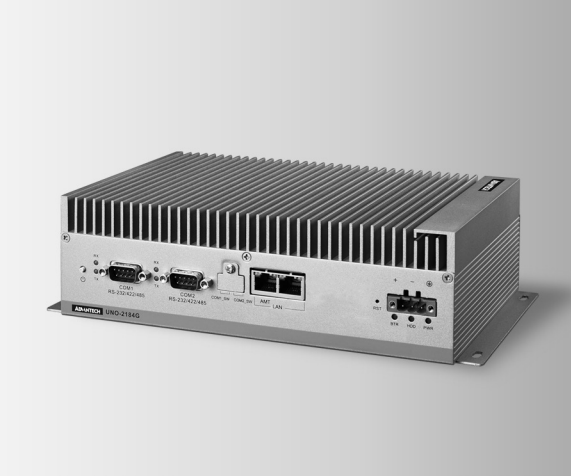

UNO2184G1401E

General ƒ Certification CE, UL, CCC, FCC Class A, BSMI ƒ Dimension (W x D x H) 255 x 152 x 69 mm (10" x 6.0" x 2.7") ƒ Enclosure Aluminum ƒ Mounting DIN-rail, Wallmount, VESA ƒ Power Consumption 40 W (Typical) ƒ Power Requirements 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX ƒ Weight 3.0 kg ƒ OS Support Windows XP/7, WES7, WES-2009 ƒ System Design Fanless with no internal cabling ƒ Remote Management Built-in Advantech DiagAnywhere agent on WES2009 / WES7 System Hardware ƒ CPU Intel Core i3-3217UE 1.60GHz (3M Cache) ƒ Memory 2 GB DDR3 SDRAM built-in ƒ Indicators LEDs for Power, battery, LAN (Active, Status) and Serial port (Tx, Rx) ƒ Keyboard/Mouse 1 x PS/2 ƒ Storage CF: 1 x CFast slot HDD: One built-in 2.5" SATA HDD bracket (2 x HDD by project support) ƒ Display 1x DVI-I, 1x HDMI display ƒ Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec ƒ Mini PCIe expansion 1x Mini PCIe socket

订货信息：UNO-2184G-D44E COMPUTER SYSTEM, i7-2655LE, 4G RAM w/4xLAN,4xCOM,2xMini-PCIe
