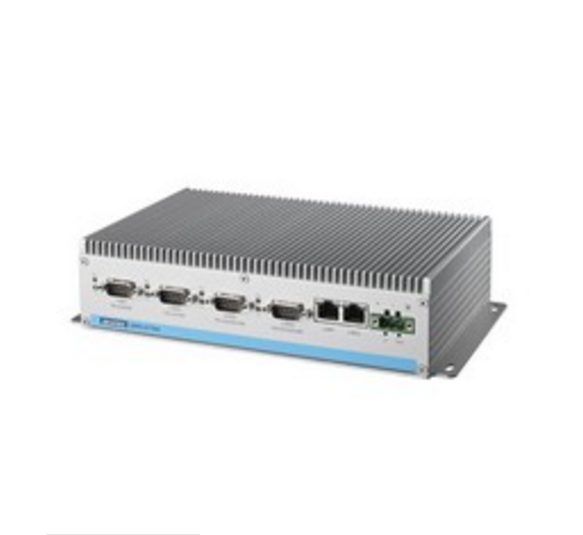

UNO-2178A-A33E

产品价格:¥
产品特点:
  1. 内建 Atom D510 1.67GHZ CPU, 2GB DDR2内存
  2. 2*RS-232/485, 2*RS-232/422/485 with 128kB FIFO
  3. 4*RS-232/485 from print port, 2*Giga LAN, 1*CF, 1*2.5'SATA HDD/SSD
  4. 6*USB2.0, VGA, 2* Mini-PCIe with 1*SIM card support, PC/104 , Audio, PS/2 无风扇嵌入式控制器
  • 产品介绍
  • 产品规格
General ƒ Certification Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI ƒ Dimensions (W x D x H) UNO-2174A-A23E: 255 x 152 x 50 mm (10" x 6.0" x 2.0") UNO-2174A-A33E: 255 x 152 x59mm(10"x6.0"x2.3") UNO-2178A: 255 x 152 x 59 mm (10" x 6.0" x 2.3") ƒ Enclosure Aluminum +SECC ƒ Mounting DIN-rail, Wallmount, VESA ƒ Industrial Grounding Isolation between chassis and power ground ƒ Power Consumption UNO-2174A: 12 W (Typical) UNO-2178A: 16 W (Typical) ƒ Power Requirements 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX ƒ Power Suspend Mode S3, S4 ƒ Weight 2.5 kg ƒ OS Support Windows XP/7, WES7, WES-2009, CE 6.0, Advantech Linux, QNX ƒ System Design Fanless design with no internal cabling ƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7 System Hardware ƒ CPU UNO-2178A: Intel Atom D510 Dual Core 1.66 GHz UNO-2174A: Intel Atom N450 1.6 GHz /D510 1.66GHz ƒ Memory 2 GB DDR2 SDRAM built-in ƒ Indicators LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) ƒ Keyboard/Mouse 1 x PS/2 ƒ Storage CF: 1 x rear type I/II CompactFlash® slot HDD: 1 x built-in 2.5" SATA HDD/SSD bracket (Not available when PCI-104 expansion is being used) ƒ Display DB15 VGA connector, UNO-2174A supports up to 1400 x 1050, UNO-2178A supports up to 2048 x 1536 ƒ Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec ƒ Expansion 2 x Mini PCIe 1 x SIM card slot ƒ Printer Port 1 x Printer port (UNO-2174A) Daughterboard (Additional purchase required) ƒ Expansion Slot PC/104+ and PCI-104 support (+5 & 3.3V power) (HDD slot is not available when PCI-104 slot is being used) 2 x Mini PCIe card slots and 1 x SIM card slot
订货信息:UNO-2178A-A33E Intel® Atom™ D510无风扇嵌入式工业电脑,6 x USB, 8 x COM, 2 x Mini PCIe
