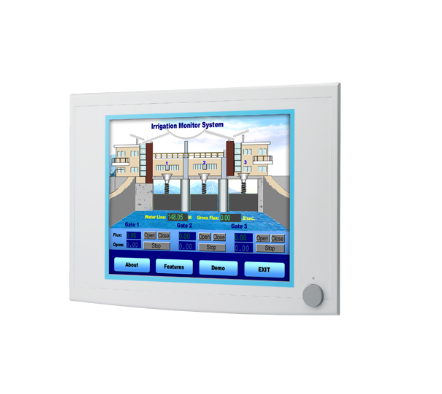

FPM-5171G

产品价格:¥
产品特点:
  • 17”SXGA真彩液晶显示屏,1080x1024分辨率
  • 直连VGA&DVI-D视频输入接口
  • 2用户定义对比/亮度设置的可锁定屏幕菜单调节OSD钥匙
  • 平面密封的前面板设计
  • 抗腐蚀底盘,压铸铝制前面板,设计牢固
  • 前接入USB连接器
  • 支持触摸屏功能的RS-232&USB组合接口(选用)
  • 支持10-30伏直流工业电输入
  • 支持面板,墙挂,桌面,支架或VESA臂挂安装
  • 前面板符合NEMA4/IP65规格
  • 产品介绍
  • 产品规格
  • The FPM-5000G series provides 15", 17" and 19" color TFT LCD with LED backlight and flat panel monitors that are specifically designed for industrial applications. With LCD size from 15" to 19", they present ample display areas as well as vivid and sharp images. It features Direct-VGA & DVI-D signal transmission, which allows VGA control cards to be used in your system. The onscreen display allows users to adjust the images on the screen with two user-defined settings. The front accessible USB connector provides easy access to the controller, and the industrial 10-30 VDC wide range power support makes this product an excellent option for Factory and Machine Automation display solutions
订货信息:FPM-1000T-SMKE Desktop/Wall Mounting kit for FPM series ƒ IPPC-6152A-RMKE IPPC-6152A/FPM-5151G Rack Mount Kit ƒ IPPC-6172A-RMKE IPPC-6172A/FPM-5171G Rack Mount Kit ƒ IPPC-6192A-RMKE IPPC-6192A/FPM-5191G Rack Mount Kit ƒ 1702002600 Power Cable US Plug 1.8 M ƒ 1702002605 Power Cable EU Plug 1.8 M ƒ 1702031801 Power Cable UK Plug 1.8 M ƒ 1700000596 Power Cable China/Australia Plug 1.8 M ƒ 96PSA-A60W12V1-1 ADP A/D 100-240V 60W 12V C14 DC PLUG 180° ƒ FPM-5000G-ADKE Mounting bracket of adapter for FPM-5000
