产品价格：￥
产品特点：

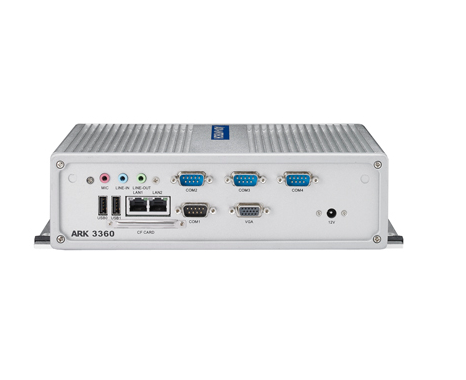

Intel® Atom™ N450/D510 1.66 GHz Fanless Embedded Box PC Supports extend temperature -40 ~ 70° C (ARK-3360LZ-N4A1E) Mini PCIe expansion for communication module, i.e. HSDPA, WLAN Dual display and supports for wide screen with high resolution Supports up to 2 x GbE, 6 x USB 2.0 and 4 x COMs ports Serial port RS-485 auto-flow support Easy integration, easy maintenance Supports SUSIAccess and Embedded Software APIs Supports SUSIAccess and Embedded Software APIs
Part No. CPU VGA GbE USB 2.0 RS-232 RS-232/ 422/485 DIO Audio Full-size MiniPCIe CF 2.5" SATAII HDD Bay Power Input Operation Temp.
ARK-3360L-D5A1E Intel Atom D510 1.66 GHz Yes 2 6 3 1 8-bits Lin-out, Line-in, MIC 1 1 1 12VDC -20 ~ 60° C
订货信息：Part Number Description
96PSA-A36W12R1 AC-to-DC Adapter, DC 12V 3A 36W
96PSA-A60W12R1-1 AC-to-DC Adapter, DC 12V 5A 60W
1700008921 Power cable 3-Pin 180cm, with PSE for 96PSA-A36W12R1
170203180A Power cable 3-Pin 180cm, UK type, for 96PSA-A36W12R1
170203183C Power cable 3-Pin 180cm, EU type for 96PSA-A36W12R1
1700001524 Power cable 3-Pin 180cm, USA type for 96PSA-A36W12R1
1702002600 Power cable 3-pin 180cm, USA type, for 96PSA-A60W12R1-1
1702002605 Power cable 3-pin 180cm, EU type, for 96PSA-A60W12R1-1
1702031801 Power cable 3-pin 180cm, UK type, for 96PSA-A60W12R1-1
1960025333N011 VESA mounting bracket
9666K10000E DIN-rail mounting kit
