产品价格：￥
产品特点：

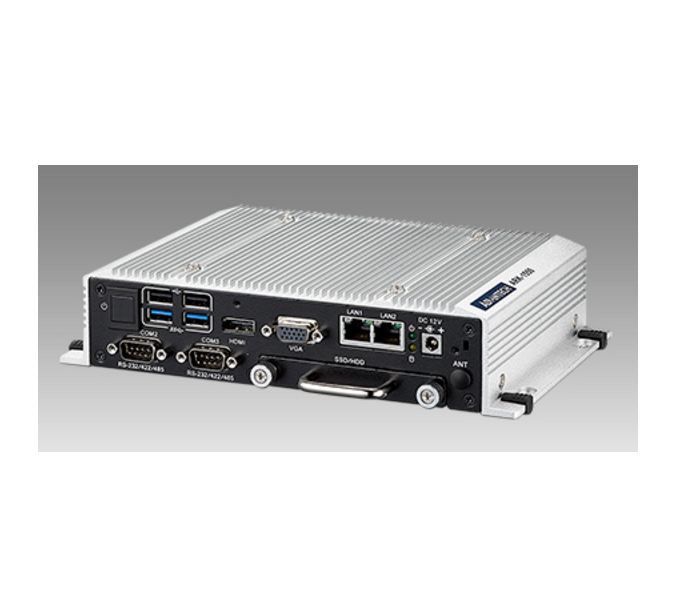

Intel® Dual Core Celeron 2980U 1.6 GHz / Core i5 4300U 1.9 GHz SoC One Hot Swappable 2.5" SATA HDD Bay and mSATA slot Triple Independent Displays by VGA + HDMI + LVDS (LVDS option) Optional VESA / DIN Rail Mounting kits Supports 2 x Intel GbE and 1 x GPIO Built-in 1 x full size MiniPCIe (i.e.: 3G module) and 1 x half size MiniPCIe slot (i.e.: WIFI module) Lockable DC jack design Supports iManager, SUSIAccess and Embedded Software APIs Support Intel Turbo Boost Technology 2.0 in Core i5 4300U
Part Number Intel CPU RAM VGA HDMI GbE USB 2.0 USB 3.0 GPIO RS-232 RS-232/ 422/485 Audio MiniPCIe 2.5" HDD bay mSATA Operating Temperature
ARK-1550-S9A1E Intel Core i5 4300U 1.9GHz Up to 8GB 1 1 2 2 2 1 1 2 Line in Line out Mic in 1 Full size w/SIM 1 1 -20 ~ 55° C A
订货信息：Part Number Description 96PSA-A60W12R1-1 AC-to-DC Adapter, DC 12V/5A 60W, with DC Jack Plug, 0 ~ 40° C for Home and Office Use 96PSA-A84W12V1 AC-to-DC Adapter, DC 12V/7A 84W, with DC Jack Plug, 0 ~ 70° C for Wide Temperature Use 1702002600 Power cable 3-pin 183 cm, USA type 1702002605 Power cable 3-pin 183 cm, Europe type 1702031801 Power cable 3-pin 183 cm, UK type 1700000237 Power cable 3-pin 183 cm, PSE type AMK-V004E VESA mounting kit AMK-R004E DIN-rail mounting kit AMO-I014E LVDS Module w/ cables. (Support by T-Part or CTOS) 1700023855-01 1M lockable HDMI cable 1700023856-01 3M lockable HDMI cable
