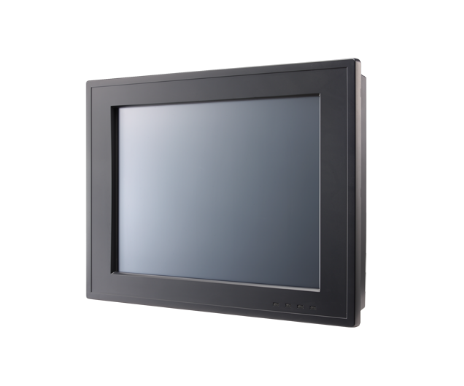

The PPC-3120 is a new 12.1" Panel PC equipped with an Intel® Atom™ processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3120 more reliable in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.
订货信息:Part No. Description
PPC-3120-RAE Atom D2550 Fanless PPC with 12.1" XGA LED backlight,
touch, without memory
96PSA-A90W19OT-1 ADP A/D 100-240V 90W 19V W/PFC
1700001524 Power cord 3P UL 10A 125V 1.8m
170203183C Power cord 3P Europe (WS-010+083)183cm
1700008921 Power cord 3P/3P Power supply 1.8M PSE
* PPC-174T-WL-MTE Wall mount kit for PPC series
* PPC-ARM-A03 PPC ARM VESA Standard
* PPC-STAND-A1E Stand For PPC Series (single acting hinge)
PPC-3100-VESAE PPC-3100 VESA bracket module
PPC-WLAN-A1E WiFi Module with Antenna Cable 40cm for PPC
PPC-3120-EXPE Add-on box for PCI or PCIe expansion
(include PCI / PCIe riser card)
2070012891 Image WES7P 32-bit Multi V4.12 PPC-3120/3100
2070011967 Image windows XPE WES2009 PPC-3120 V4.3 MUI SA
2070012979 Image WEC7 PPC-3120 V4.00 Eng
98R3612000E Msata/CFast to USB card reader
98R3415010E Front USB on cabinet module with Cable 100cm
