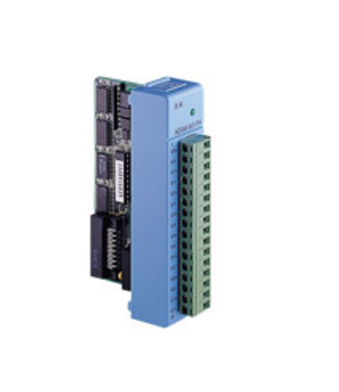

ADAM-5017H-BE

产品价格:¥
产品特点:
  1. Effective resolution: 12-bit plus sign bit
  2. Input type: mV, V, mA
  3. 3000VDC Isolation voltage protection
  4. High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
  5. 1000 Hz bandwidth
  6. Distinct range settings allowed on each channel
  7. Accuracy: ±0.1% or better
  • 产品介绍
  • 产品规格
Channels 8 differential  Effective Resolution 12-bit plus sign bit  Input Type mV, V, mA  Input Range ±250 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0 ~ +500 mV, 0 ~ +1 V, 0 ~ +5 V, 0 ~ +10 V, 0 ~ 20 mA, 4 ~ 20 mA  Isolation Voltage 3000 VDC  Sampling Rate Depends on base unit ADAM-5000/485 & 5000E: 100 samples/sec ADAM-5510: 8000 samples/sec max.: one ADAM-5017H installed ADAM-5510KW: Up to 100 samples/sec ADAM-5511: Up to 100 samples/sec ADAM-5000/TCP: 1000 samples/sec max.: depending on the performance of client server or controller  Input Impedance 20 MΩ (voltage inputs) 125 Ω (current inputs)  Bandwidth 1 kHz  Signal Input Bandwidth 1 kHz for both voltage and current inputs  Accuracy ±0.1% or better  CMR @ 50/60 Hz 92 dB min  Power Consumption 1.75 W (typical); 2.2 W (max)  Distinct Range Settings Allowed on Each Channel Note: The voltage difference between any two pins must not exceed ±15 V
订货信息:ADAM-5017H 8-channel High-Speed Analog Input Module - mV, V, mA
