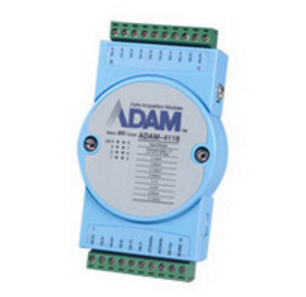

ADAM-4118

Specifications General ƒ Power Consumption 0.5W @ 24 VDC Analog Input ƒ Channels 8 differential and independent configuration channels ƒ Input Impedance Voltage: 20 MΩ Current: 120 Ω ƒ Input Type T/C, mV, V, mA ƒ Input Range Thermocouple J 0 ~ 760°C R 500 ~ 1,750°C K 0 ~ 1,370°C S 500 ~ 1,750°C T -100 ~ 400°C B 500 ~ 1,800°C E 0 ~ 1,000°C Voltage mode ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current mode ±20 mA, 4 ~ 20 mA ƒ Accuracy Voltage mode: ±0.1% or better Current mode: ±0.2% or better ƒ Resolution 16-bit ƒ Sampling Rate 10/100 samples/sec (selected by Utility) ƒ CMR @ 50/60 Hz 92 dB ƒ NMR @ 50/60 Hz 60 dB ƒ Overvoltage Protection ±60 VDC ƒ High Common Mode 200 VDC ƒ Span Drift ±25 ppm/°C (Typical) ƒ Zero Drift ±6μV/°C ƒ Built-in TVS/ESD Protection ƒ Burn-out Detection

订货信息：Robust 8-ch Thermocouple Input Module w/ Modbus
