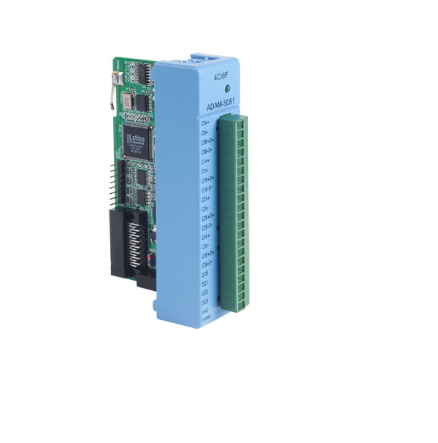

ADAM-5081-AE

General ƒ Certification CE ƒ Connectors 1 x plug-in screw terminal (# 14 ~ 18 AWG) ƒ Power Consumption 1.1 W (Max.) ƒ Enclosure ABS+PC Counter/Frequency ƒ Channels 4/8 ƒ Maximum Count 4,294,967,295 (32 bit) ƒ Input Frequency 5 Hz ~ 1 MHz max. (frequency mode) 1 MHz max. (counter mode) ƒ Input Level Isolated or TTL level ƒ Minimum Pulse Width 1μsec. (frequency mode) 1μsec. (counter mode) ƒ Minimum Input Current 2 mA (isolated) ƒ Isolation Input Level Logic level 0: 3 VDC max, Logic level 1: 10 ~ 30 VDC ƒ TTL Input Level Logic level 0: 0 ~ 0.8 VDC, Logic level 1: 2.3 ~ 5 VDC ƒ Isolation voltage 2,500 VRMS ƒ Modes Counter (up/down, bi-direction, up, A/B Phase), Frequency ƒ Counter Aux. Function Initial preset, hi-low alarm setting, alarm digital output mapping, overflag ƒ Programmable Digital 1 ~ 65,000 μsec (Noise Filter Function) Filter Note: Does not support ADAM-5510 KW series

订货信息：ADAM-5081 4/8-ch High Speed Counter/Frequency Module
