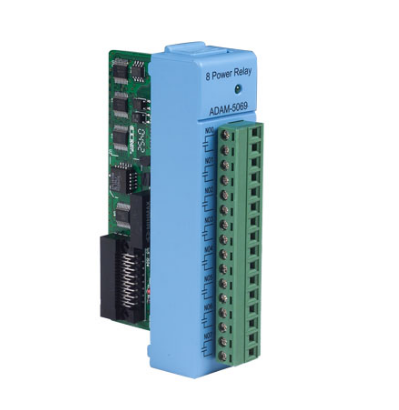

ADAM-5069-AE

General ƒ Certification CE, FCC class A ƒ Connectors 1 x Plug-in screw terminal (# 14 ~ 22 AWG) ƒ Enclosure ABS+PC ƒ LED Indicator On: Active Off: Inactive ƒ Power Consumption 2.2 W (max.) Relay Output ƒ Breakdown Voltage 750 VAC (50/60 Hz) ƒ Channels 8 x form A ƒ Contact Rating AC: 250 V @ 5 A DC: 30 V @ 5 A ƒ Insulation Resistance 1 GΩ @ 500 VDC ƒ Relay On Time 5 ms (typical) ƒ Relay Off Time 5.6 ms (typical)

订货信息：ADAM-5069 8-ch Power Relay Output Module w/ LED
