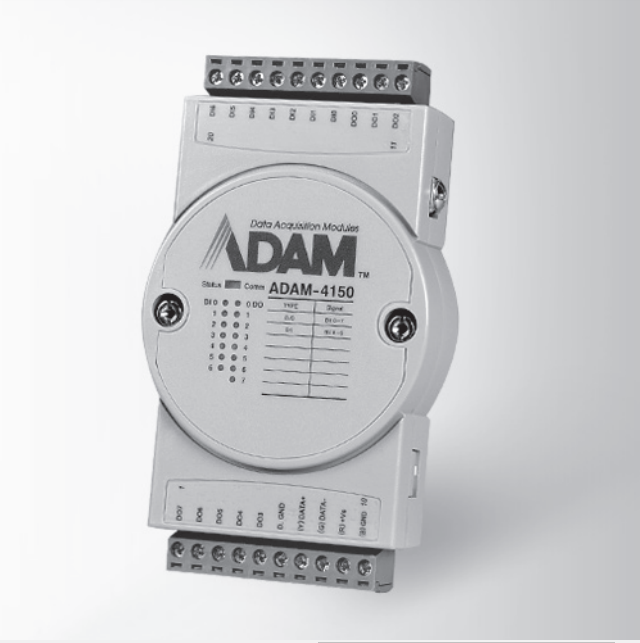

ADAM-4150-AE

General ƒ Power Consumption 0.7 W @ 24 VDC Digital Input ƒ Channels 7 ƒ Input Level Dry contact: Logic level 0: Close to GND Logic level 1: Open Wet contact: Logic level 0: 3 V max Logic level 1: 10 ~ 30 V (Note: The Digital Input Level 0 and 1 status can be inverted) ƒ Supports 3 kHz Counter Input (32-bit + 1-bit overflow) ƒ Supports 3 kHz Frequency Input ƒ Supports Invert DI Status ƒ Over Voltage Protection 40 VDC Digital Output ƒ Channels 8, open collector to 40 V (0.8A max. load) ƒ Power Dissipation 1W load max ƒ RON Maximum 150 mΩ ƒ Supports 1 kHz Pulse Output ƒ Supports High-to-Low Delay Output ƒ Supports Low-to-High Delay Output

订货信息：ADAM-4150-AE 支持Modbus的坚固型15路数字量I/O模块
