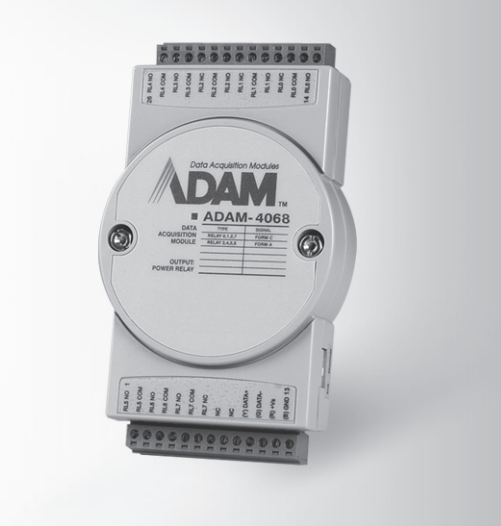

ADAM-4068-BE

General ƒ Connectors 2 x plug-in terminal blocks (#14 ~ 28 AWG) ƒ Power Consumption 0.6 W @ 24 VDC ƒ Watchdog Timer System (1.6 second) & Communication ƒ Supported Protocols ASCII command and Modbus/RTU Relay Output ƒ Breakdown Voltage 500 VAC (50/60 Hz) ƒ Channels 4 x Form A 4 x Form C ƒ Contact Rating 0.5 A @ 120 VAC (Resistive) 0.25 A @ 240 VAC 1 A @ 30 VDC 0.3 A @ 110 VDC ƒ Initial Insulation 1 GΩ min. at 500 VDC Resistance ƒ Relay off Time 4 ms (Typical) ƒ Relay on Time 3 ms (Typical) ƒ Maximum Operating Speed 50 operations/min (at related load)

订货信息：ADAM-4068-BE 支持Modbus的8路继电器输出模块
